What is an SD Card? Specifications and Types

Given the widespread use of memory cards in our daily lives, various manufacturers have introduced different specifications of memory cards for different applications. However, the plethora of specifications has left many consumers confused. This article aims to provide a comprehensive explanation of memory cards to help you select the right one for your needs.

The full name for an SD card is Secure Digital Memory Card, abbreviated as “SD.” It is a new generation of memory devices based on semiconductor flash memory. Developed jointly by Panasonic, SanDisk, and Toshiba in 1998 and 1999, the SD card is a small storage medium. In 2000, these companies established the Secure Digital Association (SDA) to set SD card standards.

What is a TF Card? What is a microSD Card?

The full name of a TF card is TransFlash Card, which is a smaller storage card designed using SD architecture. It is about the size of an adult fingernail, measuring 11mm x 15mm x 1.4mm, roughly a quarter of the size of a standard SD card. Introduced by SanDisk and Motorola in 2004, the TF card was later adopted by the SDA and renamed microSD card. Thus, terms like T card, TF card, and microSD card all refer to the same type of micro memory card.



Various Types of SD Card Products

The table below details the different types of SD card products, highlighting their specifications, dimensions, and application features.

Product Type Image Description / Dimensions Application / Features
SD 3.0 and below
9 pins, currently the most common SD card, UHS-I transfer speed up to 104MB/s. 32mm x 24mm x 2.1mm Cameras, car DVRs
microSD 3.0 and below
8 pins, currently the most common microSD card, UHS-I transfer speed up to 104MB/s. 15mm x 11mm x 0.7mm (1.0mm tail thickness) Phones, dash cams, surveillance
SD 4.0

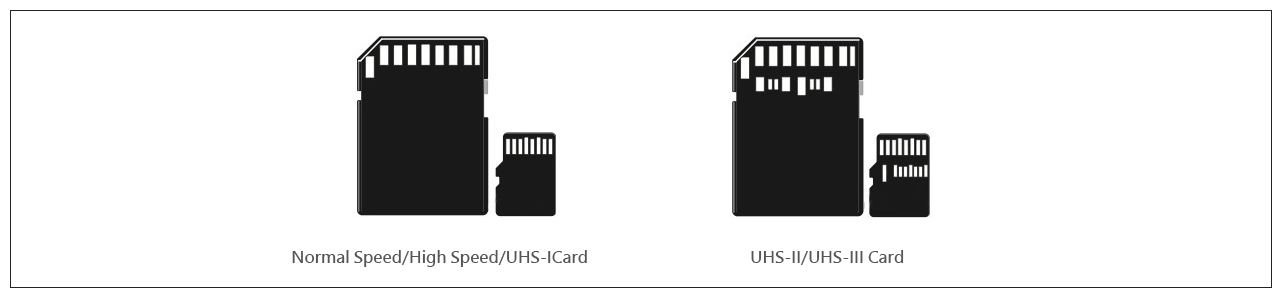

17 pins, UHS-II transfer speed up to 312MB/s, first row pins compatible with SD 3.0 and below. 32mm x 24mm x 2.1mm UHS-II high performance supports 4K, 8K, and 3D video recording
microSD 4.0
16 pins, UHS-II transfer speed up to 312MB/s, first row pins compatible with microSD 3.0 and below. 15mm x 11mm x 0.7mm (1.0mm tail thickness) UHS-II high performance supports 4K, 8K, and 3D video recording
Half SD 4.0
Half the length of an SD 4.0 card, but otherwise identical. 21mm x 24mm Supports 4K, 8K, and 3D video recording, suitable for Surface Book storage and space upgrades
UFS Card (Universal Flash Storage Card)
Released in March 2016, UFS 1.0 spec with transfer bandwidth up to 5836.3 Mbps, similar in size to microSD. 11mm x 15mm Currently incompatible with SD slots; potential future dual-slot designs may support both microSD and UFS cards. Expected to first appear in Samsung phones.

By understanding these various types of SD card products, consumers can make informed decisions when selecting the right memory card for their specific needs.

The Relationship and Differences Between microSD and SD Cards

A microSD card is a smaller version of an SD card, and technically, they are fundamentally the same as both follow the SD protocol. The main difference lies in their physical form.

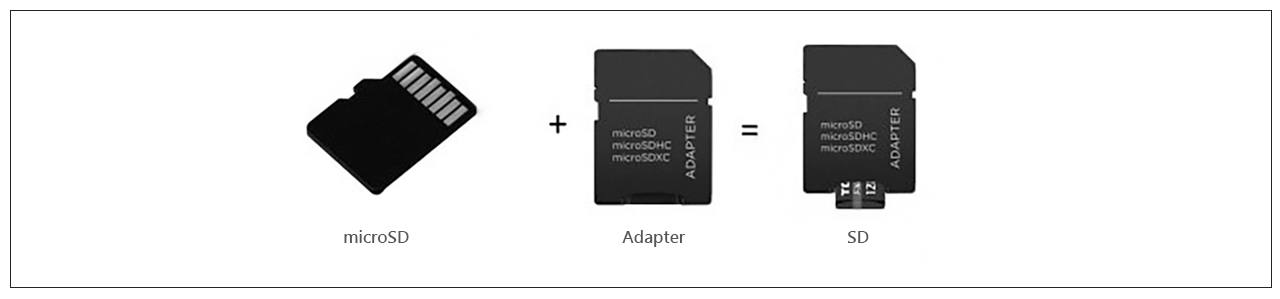

A microSD card can be converted into an SD card using an adapter. This adapter essentially houses the microSD card and transforms it so that it matches the shape and functionality of a standard SD card. The adapter contains the necessary wiring to convert the microSD card’s pin configuration to that of an SD card.

A microSD card has 8 pins, while an SD card has 9 pins. The additional pin in SD cards is because SD cards have two ground (GND) pins.

The Relationship and Differences Between microSD and SD Cards

A microSD card is a smaller version of an SD card, and technically, they are fundamentally the same as both follow the SD protocol. The main difference lies in their physical form.

A microSD card can be converted into an SD card using an adapter. This adapter essentially houses the microSD card and transforms it so that it matches the shape and functionality of a standard SD card. The adapter contains the necessary wiring to convert the microSD card’s pin configuration to that of an SD card.

A microSD card has 8 pins, while an SD card has 9 pins. The additional pin in SD cards is because SD cards have two ground (GND) pins.

Why is Actual Capacity Smaller Than the Standard Capacity?

This discrepancy arises mainly due to different calculation methods used by flash memory manufacturers and computer systems. Flash memory manufacturers calculate storage capacity using 1GB = 1000MB, 1MB = 1000KB, etc. However, computer systems calculate it as 1GB = 1024MB, 1MB = 1024KB, etc. Additionally, SD card firmware occupies some space, usually not very large. Typically, the actual capacity of an SD card read by a computer is about 90% to 93% of the standard capacity.

How Does the Write-Protect Switch on an SD Card Work? Is the Card Always Write-Protected When Locked?

The write-protect switch on an SD card is simple in its operation. It does not affect the internal circuitry of the SD card. The write-protection is controlled by the circuitry in the external card reader. When the write-protect switch is in the “Unlock” (open) position, the metal clip in the card reader is in contact, allowing data to be written to the SD card. When the switch is in the “Lock” (closed) position, the clip is disengaged, preventing data from being written. Therefore, the effectiveness of the write-protect switch depends on whether the card reader is designed with this function.

What Are SD1.0, SD2.0, SD3.0, and SD4.0 Cards?

The SD Association has introduced various specification protocols for SD cards, such as SD1.0, SD2.0, SD3.0, and SD4.0. Each version complies with the corresponding standards set by the SD Association, with differences mainly in capacity and bus speed. The table below summarizes the supported bus modes for each SPEC version:

Bus Interface Table

Bus Interface Card Type Bus Marking Bus Speed Specification Version
Default Speed SD, SDHC, and SDXC 12.5MB/s 1.01
High Speed SD, SDHC, and SDXC 25MB/s 1.10
UHS-I SDHC and SDXC 50MB/s (SDR50, DDR50), 104MB/s (SDR104) 3.01
UHS-II SDHC and SDXC 156MB/s Full Duplex, 312MB/s Half Duplex 4.00
UHS-III SDHC and SDXC 312MB/s Full Duplex, 624MB/s Full Duplex 6.00
  • SD1.0: Normal Speed bus interface, maximum bandwidth 12.5MB/s, no unified speed (read/write) marking on the card.
  • SD2.0: Up to 32GB capacity, High Speed bus interface, maximum transfer bandwidth 25MB/s, card has Class rating markings.
  • SD3.0: Ultra High Speed I (UHS-I) bus interface, bus speed up to 104MB/s (SDR104 mode).
  • SD4.0: Ultra High Speed II (UHS-II) bus interface, transfer rates up to 312MB/s. UHS-II cards have additional pins on the physical interface.
  • UHS-III: Ultra High Speed III, new SD6.0 standard, same physical pin layout as UHS-II, bandwidth up to 624MB/s.

SD Card Speed Classes

SD card speed classes are divided into various categories. The table below details these classifications.

Speed Class Table

Speed Class Class Levels Bus Mode Speed
Speed Class Class 4, Class 6, Class 10 HS Sequential write speed of 4MB/s, 6MB/s, 10MB/s or higher
UHS Speed Class U1, U3 UHS-I, UHS-II Sequential write speed of 10MB/s, 30MB/s or higher
Video Speed Class V6, V10 HS, UHS-I, UHS-II Sequential write speed of 6MB/s, 10MB/s
V30 UHS-I, UHS-II Sequential write speed of 30MB/s
V60, V90 UHS-II Sequential write speed of 60MB/s, 90MB/s
Application Performance Class A1 UHS-I (“DDR50”, “SDR50”, “SDR104”), UHS-II Minimum 4K random read/write 1500/500 IOPS; minimum sustained sequential write performance 10MB/s
A2 UHS-I (“DDR50”, “SDR50”, “SDR104”), UHS-II Minimum 4K random read/write 4000/2000 IOPS; minimum sustained sequential write performance 10MB/s

Difference Between Class 10 and U1

Class 10 and U1 both have write speeds of 10MB/s or higher, but they are distinct standards. Speed Class (e.g., Class 10) is defined under SD2.0 mode, while UHS Speed Class (e.g., U1) is defined under SD3.0 UHS mode. Because they are independent of each other, many memory cards are marked with both U1 and C10 to indicate they meet both standards.

The Meaning of SDSC, SDHC, and SDXC

SDSC, SDHC, and SDXC have different meanings and specifications as outlined below.

SDSC, SDHC, and SDXC Table

Standard Capacity File System SD Logo
SDSC Up to 2GB FAT12, FAT16
SDHC More than 2GB, up to 32GB FAT32
SDXC More than 32GB, up to 2TB exFAT

Do SDSC, SDHC, and SDXC Relate to Speed? Is SDXC Faster than SDHC?

SDSC, SDHC, and SDXC are classified based on card capacity and are not directly related to the speed of the SD card. The speed of an SD card depends on the quality of the flash memory and the design of the solution. Therefore, an SDXC card is not necessarily faster than an SDHC card.

Is an SDXC Card an SD3.0 Card?

An SDXC card does not necessarily indicate it is an SD3.0 card. SDXC only refers to capacity, which ranges from 32GB to 2TB, and does not correlate directly with the SD version. For instance, a 64GB (SDXC) SD card can be produced in SD2.0 mode.

When Does a Card’s Speed Decrease?

An SD card’s read/write speed may slow down after extensive use due to an increase in “dirty” data or garbage data, which requires more time for the controller to perform garbage collection.

Long-term disuse of an SD card can also lead to slower speeds. Due to the characteristics of NAND flash memory, long-term storage can cause data corruption due to electron leakage and crosstalk. The controller may need to perform multiple read retries, which significantly impacts read/write speed.

Understanding these details helps consumers choose the right type of memory card for their needs.
